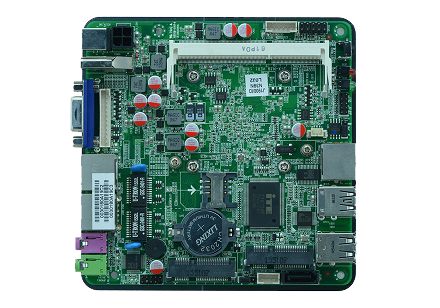

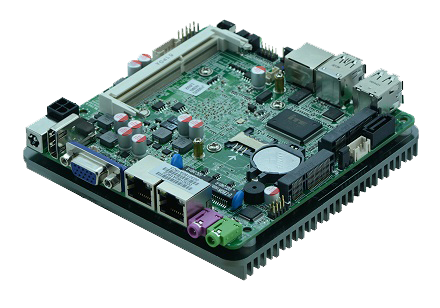

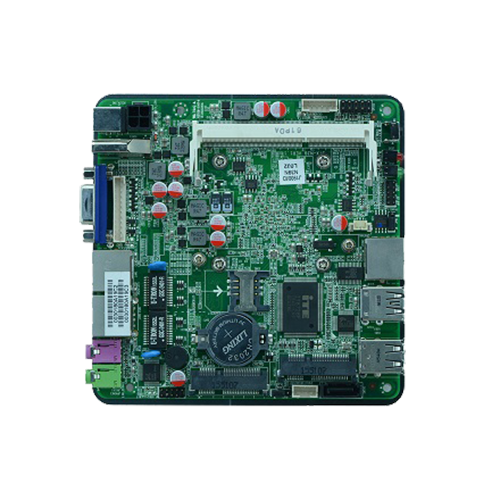

MX-AITX02
Selling Points:
1. Base on Intel ® Apollo lake SOC platform
2. SO-DIMM DDR3L expand as you please
3. Support Windows 10/Linux
4. Support VGA/HDMI/LVDS
5. Interface rich, expand as you please
6. Fanless cooling design
CPU | Intel Apollo Lake J3455/J3355/N3950 | GPIO | Support 4-way Input / Output GPIO |
Dimensions | 120mm*120mm | Watch Dog | Support Hardware reset function(0-255s) |
Memory | DDR3L SO-DIMM up to 8GB | I/O Ports | PS/2 KB/MS port*1, SIM socket*1, |
Storage | SATA2.0*1, MSATA*1 support SSD/WIFI | 1*3PIN CPU fan connector | |
Display | VGA*1, HDMI*1 | USB2.0*5, USB3.0*1 | |
LAN | Gigabit Lan RJ45*2, support WOL/PXE | RS232 CISCO COM port*1 | |
Expansion | Mini PCIE*1, support WIFI/3G/4G | AC Adaptor | DC IN 12V |
Audio | ALC662, Line-in/Line-out/Power amplifier | OS | Windows 10/Linux |
